Setup

# Nextcloud

While services like Google Drive, Dropbox, and OneDrive are practical options for cloud storage, they can be limiting with their available disk space—making it challenging to host large files such as a music library. Nextcloud eliminates this limitation by enabling you to host your own cloud service that’s accessible from anywhere.

I utilize a Raspberry Pi 5 equipped with a NVMe hat and a NVMe SSD 2TB drive, thus ensuring ample disk space for my needs.

Prerequisites

  • A Raspberry PI 5 (or equivalent hardware) (1)
  • Docker
  1. Using a Raspberry Pi for this project is cost-effective, not only in terms of initial investment but also for ongoing power consumption, with only about 5W used when idle. However, if you already have a server, you can follow the same installation steps on that hardware and operating system.

Docker

Although Docker is a prerequisite, let’s briefly cover its installation, as we won’t be using the version that comes with the operating system’s packages. Instead, we’ll follow the installation guide provided on the Docker website.

Setup Docker apt repository

# Add Docker's official GPG key:
sudo apt-get update
sudo apt-get install ca-certificates curl
sudo install -m 0755 -d /etc/apt/keyrings
sudo curl -fsSL https://download.docker.com/linux/debian/gpg -o /etc/apt/keyrings/docker.asc
sudo chmod a+r /etc/apt/keyrings/docker.asc

# Add the repository to Apt sources:
echo \
  "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.asc] https://download.docker.com/linux/debian \
  $(. /etc/os-release && echo "$VERSION_CODENAME") stable" | \
  sudo tee /etc/apt/sources.list.d/docker.list > /dev/null
sudo apt-get update

To install the latest version

sudo apt-get install docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin

Test

sudo docker run hello-world

Reverse proxy

To avoid exposing the Nextcloud instance directly and to keep ports 80 & 443 available for other services, a reverse proxy is essential. Despite being more familiar with Apache, in the spirit of learning, I chose Nginx, specifically the Nginx Proxy Manager project, which has a Docker image and offers an intuitive UI. This image is also available on Docker Hub.

Nextcloud

Nextcloud offers several installation options and provides a Docker image alongside instructions for setting it up.

docker-compose.yml

Both Nginx and Nextcloud require seperate database containers. We'll create one docker-compose.yml file to manage all four Docker images:

volumes:
  nextcloud-data:
  nextcloud-db:
  npm-data:
  npm-ssl:
  npm-db:

networks:
  frontend:
    # add this if the network is arleardy existing
    # external: true
  backend:
    # external: true

services:
  nextcloud-app:
    image: nextcloud
    restart: unless-stopped
    volumes:
      - nextcloud-data:/var/www/html
    environment:
      - MYSQL_PASSWORD=secure_password
      - MYSQL_DATABASE=nextcloud
      - MYSQL_USER=nextcloud
      - MYSQL_HOST=nextcloud-db
    networks:
      - frontend
      - backend

  nextcloud-db:
    image: mariadb
    restart: unless-stopped
    command: --transaction-isolation=READ-COMMITTED --binlog-format=ROW
    volumes:
      - nextcloud-db:/var/lib/mysql
    environment:
      - MYSQL_ROOT_PASSWORD=very_secure_password
      - MYSQL_PASSWORD=secure_password
      - MYSQL_DATABASE=nextcloud
      - MYSQL_USER=nextcloud
    networks:
      - backend

  npm-app:
    image: jc21/nginx-proxy-manager:latest
    restart: unless-stopped
    ports:
      - "80:80"
      - "81:81"
      - "443:443"
    environment:
      - DB_MYSQL_HOST=npm-db
      - DB_MYSQL_PORT=3306
      - DB_MYSQL_USER=npm
      - DB_MYSQL_PASSWORD=another_secure_password
      - DB_MYSQL_NAME=npm
    volumes:
      - npm-data:/data
      - npm-ssl:/etc/letsencrypt
    networks:
      - frontend
      - backend

  npm-db:
    image: jc21/mariadb-aria:latest
    restart: unless-stopped
    environment:
      - MYSQL_ROOT_PASSWORD=yet_another_very_secure_password
      - MYSQL_DATABASE=npm
      - MYSQL_USER=npm
      - MYSQL_PASSWORD=yet_another_secure_password
    volumes:
      - npm-db:/var/lib/mysql
    networks:
      - backend

This docker-compose.yml file should be located in the /opt/nextcloud directory.

Starting up

To launch the services defined in the docker-compose.yml file, use the following command:

sudo docker compose up -d

Warning

See section "Essential details" before continuing. The config/config.php file must be updated before moving on.

NPM config

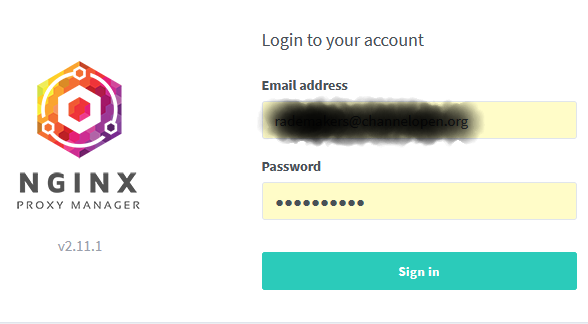

Navigate to the Nginx Proxy Manager by entering http://:81 in your web browser, where you will be greeted by a login screen:

Login

Note

The default login credentials are admin@example.com for the username and changeme for the password. Upon first login, you will be prompted to change these to secure ones.

Once logged in, the dashboard will resemble the following:

Main

To begin creating a proxy host, navigate to "Hosts" and then "Proxy Hosts" from the top menu, or click "Proxy Hosts" on the main dashboard. Initially, you will see no existing hosts until you add a new one by selecting "Add Proxy Host":

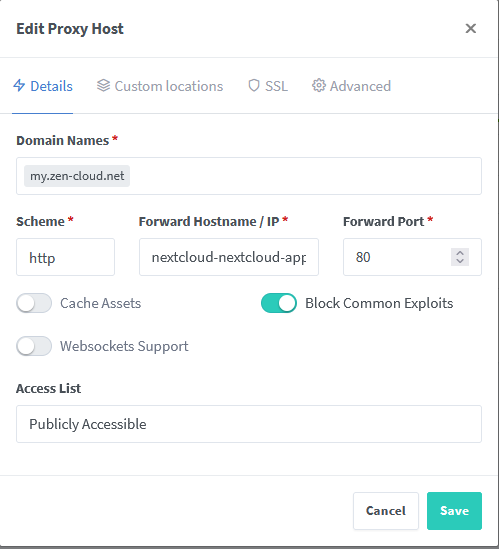

Edit Proxy Host

When adding the proxy host:

  • Under "Domain Names," enter the FQDN to access Nextcloud, such as nextcloud.example.com.
  • For "Scheme," select http since network traffic will be encrypted by the reverse proxy. (1)
  • In "Forward Hostname / IP," input the Docker container's name.
  • Set "Forward Port" to 80.
  • Enable "Block Common Exploits" for added security.
  1. The traffic will be secure from the internet to the reverse proxy, while the connection from the reverse proxy to the Nextcloud container will be unencrypted. This is commonly acceptable within a trusted network.

Next, under the SSL tab within "Edit Proxy Host," configure the SSL certificate:

Edit Proxy Host SSL

Choose "Request a new SSL Certificate" and create one with Let's Encrypt. This process uses Certbot and should be seamless.

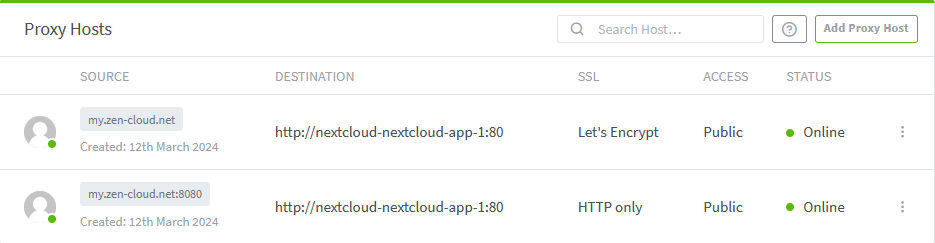

After configuration, your "Proxy Hosts" should appear as follows:

Proxy Hosts

Access Nextcloud's web interface securely over HTTPS via your FQDN. From the "Proxy Hosts" list, click the FQDN link in the "SOURCE" column to verify the connection.

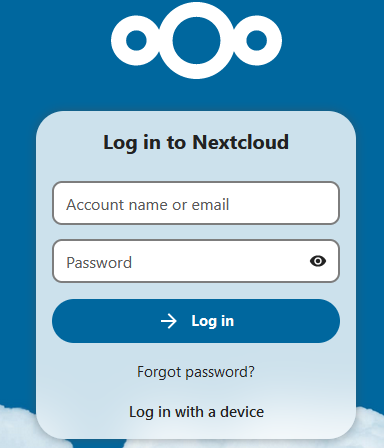

You should reach Nextcloud's login page: Proxy Hosts

Helpful docker commands

Retrieve logs from all containers:

docker compose logs (1)
  1. This will dump all the different containers' logs in your terminal. You can grep for a specific container if you wish, or pipe it to more.

Connect to the Nextcloud container using bash:

docker exec -it nextcloud-nextcloud-app-1 /bin/bash (1)
  1. This will connect you to the nextcloud-app instance with a bash shell.

Note

Not all Docker containers come with a bash shell packaged in. One of the DB instances running mariadb is running in alpine and you'll have to specify sh instead of bash

To reset the Nextcloud admin password from the command line:

docker exec -it -u www-data nextcloud-nextcloud-app-1 php /var/www/html/occ user:resetpassword admin (1)
  1. If you forgot your admin password... "admin" is the account you created when you initialy connected to the Nextcloud web UI

Stopping all running containers:

docker compose stop (1)
  1. Very explicit command, but you can also append a specific container name.

Stop and remove all containers, networks and volumes:

docker compose down

Adding your user to the docker group:

sudo usermod -aG docker rademakr (1)
  1. Add you user account to the docker group. Avoids having to run sudo for (most) docker commands.

Remove Volumes:

docker volume ls  # List volumes
docker volume rm <volume_name> (1)
  1. If you want to completely reset the date, including uploaded files and database. Be careful--this erases all Nextcloud data.

Recreate Nextcloud from scratch with freshly pulled Images:

docker compose pull  # Pull all new images for described instances in the dockerfile
docker compose up -d (1)
  1. Once this step is done, you'll need to navigate to https://my.zen-cloud.net to init your admin account + reinstall apps on phone and desktop

Connecting to the instanaces

Connecting to the main Nextcloud-app instance:

docker exec -it nextcloud-nextcloud-app-1 /bin/bash

or the Nextcloud-db:

docker exec -it nextcloud-nextcloud-db-1 sh

Essential details

Configuration adjustments are necessary within the Nextcloud instance. Modify the config/config.php file to include your Fully Qualified Domain Name (FQDN) in the trusted domains array:

'trusted_domains' =>
array (
  0 => '10.5.5.210:8080',
  1 => 'my.zen-cloud.net',
),

While editing config/config.php, also ensure these lines are present or uncommented to force the use of HTTPS:

'overwrite.cli.url' => 'https://my.zen-cloud.net',
'overwriteprotocol' => 'https',

To automate updates for Docker containers, consider using Watchtower. The following command will run Watchtower once in debug mode:

docker run --name watchtower -v /var/run/docker.sock:/var/run/docker.sock containrrr/watchtower --run-once --debug

TODO
